Car Paint Booths — the SD Series
Car paint booths supplied from one set. The VPB-SD98 European is published with its full data sheet, including its downdraft configuration; every other model is quoted against your configuration, with its airflow arrangement confirmed at that stage.
- 30,000 m³/hintake and exhaust airflow, VPB-SD98
- 80 °Cmaximum bake temperature, VPB-SD98
- 6 modelsin the SD booth series
- 1 setminimum order
Six booths, one fully documented model
The VICO paint booth range covers the standard diesel painting booth and the electric painting booth, a bus booth and industrial painting lines — the categories the range is recorded under. Six SD-series models are currently listed. The European-spec VPB-SD98 below is documented with its complete data sheet; the remaining models are listed by name so you can enquire against the configuration you need.
BAY 01 · PAINT BOOTHS

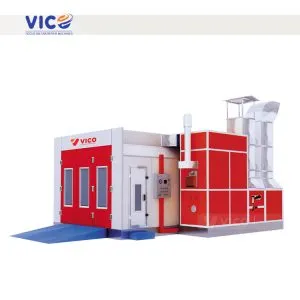

VPB-SD98 European — complete data sheet
The VPB-SD98 is a full-grill downdraft booth built around a 300 mm galvanised basement, 50 mm rockwool sandwich wall panels and a Riello G20 diesel burner with a stainless heat exchanger. Two 7.5 kW turbo fans move 30,000 m³/h on both intake and exhaust, and its filtration is recorded by name: a G3 pre-filter, a ceiling filter of 600G EU5/F5 class, a floor fibreglass filter, and an exhaust fibreglass and carbon filter.
| Outside dimensions | 7,000 × 5,350 × 3,400 mm |
|---|---|
| Inside dimensions | 6,900 × 3,900 × 2,650 mm |
| Front door | 3,000 × 2,600 mm · service door 800 × 2,000 mm |
| Total power | 17 kW |
| Airflow | Downdraft, full grills, 300 mm galvanised basement |
| Wall panels | 50 mm rockwool sandwich panel, 0.426 mm steel sheet |
| Ceiling panel | 0.8 mm galvanised steel · door glass 5 mm tempered |
| Fans | Intake 1 × 7.5 kW turbo fan (DDF-630B), 30,000 m³/h · exhaust 1 × 7.5 kW, 30,000 m³/h |
| Filtration | Pre-filter G3 · ceiling filter 600G EU5/F5 · floor fibreglass filter · exhaust fibreglass + carbon filter |
| Heating | SUS 304 heat exchanger, 200 kW · Riello G20 diesel burner (gas burner optional) |
| Heating output | 20,000 Kcal/hour · max. temperature 80 °C · fuel consumption 6–8 L per vehicle |
| Lighting | Ceiling 8 units × 4 × 16.5 W LED · side 8 units × 2 × 16.5 W LED · 1,200 LUX |
| Ramps | 2 × 2,000 × 750 mm |
What to confirm on a booth enquiry
When you enquire, tell us the internal dimensions you need, whether your local rules require diesel, gas or electric heating, and the voltage and frequency at your site — the SD98 ships as a 17 kW installation; its published specification lists 7.5 kW turbo fans at inlet and exhaust and a Riello G20 diesel burner, with a gas burner listed as optional. Booths are supplied from one set, tested before delivery and packed for sea freight; the average lead time across the VICO range is around 15 days before dispatch. Custom booth designs for larger vehicles and production lines are quoted individually — see the industrial paint booth page, or read how the sourcing process works on the paint booth supplier page.
Is the VPB-SD98 a downdraft booth?
Downdraft. In the published configuration, air enters through the ceiling filter and is drawn down through the full-grill floor into the 300 mm basement.
Can the burner be gas instead of diesel?
Yes, a gas burner is listed as an option for this model. State your local fuel and emissions requirements in the enquiry; the burner for the model is confirmed on its quotation.
What is the minimum order?
One set. Every model in the range is specified and quoted on its own specification.
Related booth pages
Price a booth for your market
Send the models you are comparing, your workshop size and your destination port. Most machine orders start from a single set, and each model's specification is confirmed on quotation.
