EQUIPMENT · TIRE SERVICE
Tire Changers — the VTC Series
Four changers and two balancers for the tire bay. The YK860 is published in full: outside clamping of 9″–22″ and inside clamping of 12″–24″, a 2,500 kg bead breaker and a three-point assist arm.
- 9″–22″outside clamping range, VTC-YK860
- 12″–24″inside clamping range, VTC-YK860
- 2,500 kgbead breaking force, VTC-YK860
- < 70 dBworking noise, VTC-YK860
Six models for the tire bay

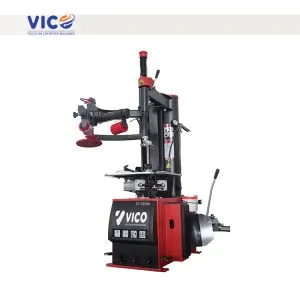

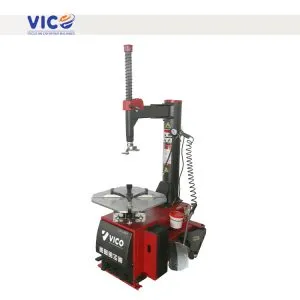

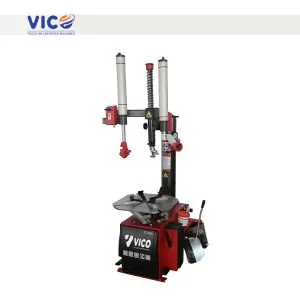

The VICO tire range lists four changers and two balancers. The VTC-YK860 changer is published with a complete data sheet below; the YK850, YK850A and YK850B changers and the VTB-YK520 and VTB-YK510 balancers are listed for enquiry, with specifications confirmed on quotation.
BAY 05 · TIRE SERVICE

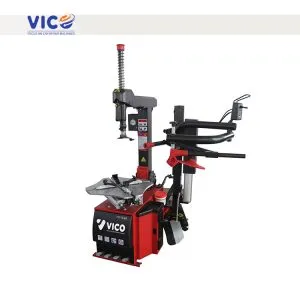

VTC-YK860 — complete data sheet
The YK860 is recorded with outside clamping from 9″ to 22″ and inside clamping from 12″ to 24″, wheels up to 1,040 mm in diameter and rim widths from under 3″ to 15″. Bead breaking force is 2,500 kg, and a three-point bead-pressing assist arm is fitted as part of the recorded specification. Working noise is recorded at under 70 dB, and working pressure at 8–10 bar. Its motor is recorded as 220 V / 380 V at 50 Hz / 60 Hz. The other changers — the YK850, YK850A and YK850B — are listed by name in the cards above.
Reading the data sheet: the two clamping spans are recorded separately — outside clamping 9″–22″ and inside clamping 12″–24″ — and the motor is recorded as 220 V / 380 V at 50 Hz / 60 Hz.
| Outside clamping range | 9″ – 22″ |
|---|---|
| Inside clamping range | 12″ – 24″ |
| Max. wheel diameter | 1,040 mm |
| Rim width | < 3″ – 15″ |
| Bead breaking force | 2,500 kg |
| Assist | Three-point bead-pressing assist arm |
| Noise | < 70 dB |
| Working pressure | 8–10 bar |
| Motor | 220 V / 380 V · 50 Hz / 60 Hz |
| Weight | 340 kg |
Changer and balancer

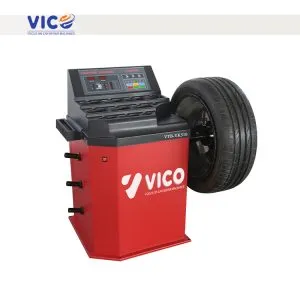

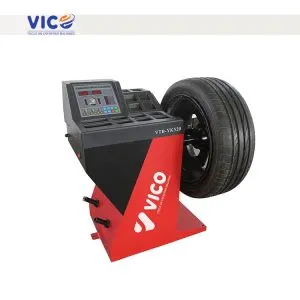

The two VTB wheel balancer models, the VTB-YK520 and the VTB-YK510, are listed by name in the range; neither balancer's data sheet is published on this site, and each balancer's specification is confirmed on quotation. Changers and balancers are supplied from one set each, with lead time confirmed on quotation (range average around 15 days before dispatch). When you enquire, give the largest wheel sizes you handle and the fitment types you handle — each changer specification is confirmed on quotation against them.
The recorded figures
The YK860's data sheet records a machine weight of 340 kg, a working noise level under 70 dB, a rim width span from under 3″ to 15″, and the clamping spans in the data sheet above — 9″–22″ outside clamping and 12″–24″ inside clamping. Those are the published figures for this model; the other changers in the range are specified on quotation.
What bead-breaking equipment does the YK860 carry?
The recorded specification includes a three-point bead-pressing assist arm and a 2,500 kg bead breaker. Suitability for a particular stiff fitment is confirmed on quotation.
What air supply does the changer need?
The documented changer, the VTC-YK860, is recorded with a working pressure of 8–10 bar; the air supply for each of the other changers is confirmed on quotation.
Can a balancer be ordered with a tire changer?
Each model is specified on its own quotation; send the wheel sizes you handle with the enquiry.
Equip your tire bay
Send the models you are comparing, your workshop size and your destination port. Most machine orders start from a single set, and each model's specification is confirmed on quotation.
